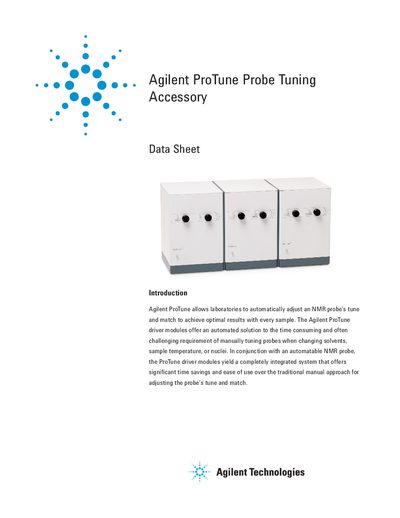

Agilent ProTune is an accessory that automatically adjusts the tune and match of an NMR probe to achieve optimal results with every sample. It saves time and offers an easy-to-use integrated system.
The Agilent ProTune accessory allows laboratories to automatically adjust an NMR probe's tune and match to achieve optimal results with every sample. It offers an automated solution to the time-consuming requirement of manually tuning probes when changing solvents, sample temperature, or nuclei.
The system consists of driver modules that connect to automatable NMR probes via flexible drive shafts and communicate through an Ethernet port. Controlled by VnmrJ software, it provides customizable automatic tuning options while maintaining the ability for manual adjustment.
| Supply voltage (Master driver) | 100-120 V, 2A or 220-240 V, 1A |
|---|---|
| Fuse rating (Master driver) | 115 V fuse type rated 250 V, 2A |
| Input power | Control RJ45 to DIO board, Ethernet |
| Weight (Master driver) | 10 lb (4.5 kg) |
There is no required maintenance for the individual units.
VnmrJ 2.2C or newer is required.
The system supports Agilent NMR systems OD2 MR, 400-MR DD2, VNMRS, and 400-MR.
