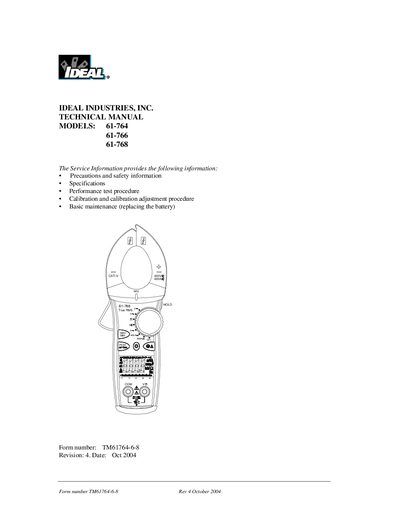

Ideal Industries 61-764/61-766/61-768 Technical Manual

The Service Information provides the following information: • Precautions and safety information • Specifications • Performance test procedure • Calibration and calibration adjustment procedure • Basic maintenance (replacing the battery).

Brand: IDEAL
Category: multimeter
Document type: Service Manual
Language: English
Pages: 13
File format: PDF
File size: 284 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9DBB4AED8B9524928D6F0894593AF0B1
PDF: Ideal Industries 61-764/61-766/61-768 Technical Manual PDF

About this manual

This document serves as a technical guide for qualified personnel regarding the Ideal Industries 61-760 series multimeters. It provides essential safety precautions, symbol definitions, and detailed specifications including voltage, current, resistance, capacitance, frequency, and continuity ranges with accuracy data specific to each model.

What's inside

Precautions and Safety Information
Certifications and Compliance
General Specifications
Ranges and Accuracy Specification
Performance Verification
Calibration Reference Points
Replacing the Battery

Specifications

Display Count	4000 count, maximum reading 3999
Sampling Rate	2.0 time/second
Operating Temperature	0°C to 50°C (32°F to 122°F)
Power Source	9V Battery (NEDA 1604)
Battery Life (Model 61-764)	400 hours typical
Battery Life (Model 61-768)	150 hours typical
