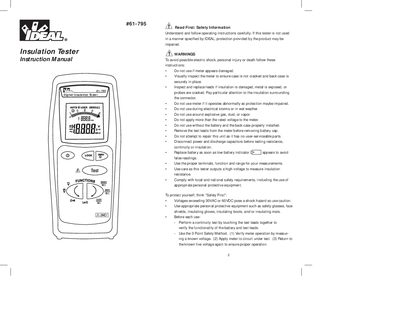

This document is the instruction manual for the 61-795 Insulation Tester, providing safety guidelines for its use. Users are warned not to use the tester if it appears damaged, and to visually inspect the meter to ensure the case is intact. The manual also provides instructions on replacing leads if insulation is damaged, and warns against using the meter in abnormal conditions or without proper precautions.
The IDEAL 61-795 is a digital insulation tester designed for measuring AC/DC voltage, resistance, continuity, and insulation resistance. It features autoranging, a 4-inch LCD display, and the ability to perform timed or continuous insulation tests at voltages of 250V, 500V, or 1000V. The device includes safety features such as auto power-off and low battery indicators to ensure user protection during electrical measurements.
| Display | 9999 Count/4" LCD |
|---|---|
| Refresh Rate | ≥ 2.0x/sec |
| Auto Power Off | 15 minutes |
| Batteries | (6) 1.5V AA LR6 |
| Weight | 15.9 oz (450g) |
| Insulation Test Voltages | 250V/500V/1000V |
The battery life is 50 hours or 1000 tests when using 1000V/480kΩ.
Select the Ohms function, apply the test leads to the circuit, and the beeper will sound if the resistance is 30Ω or less.
No, the unit has no user-serviceable parts and should not be repaired by the user.
Users should use safety glasses, face shields, insulating gloves, insulating boots, and/or insulating mats.
