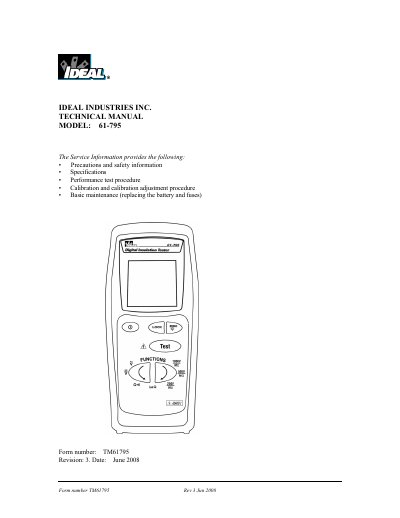

This document is the technical manual for IDEAL INDUSTRIES model 61-795 instrument, including precautions and safety information, specifications, performance test procedure, calibration and calibration adjustment procedure, basic maintenance (replacing battery and fuses) etc.
The document serves as a technical guide for qualified personnel to perform maintenance on the Ideal 61-795. It covers essential topics such as safety warnings regarding high voltage and static discharge, required equipment lists for testing and calibration, and detailed step-by-step procedures for verifying instrument performance against specific specifications.
| Fuse Type | BBS 1A/600V, 10.4*35 (0.41x1.38 inch) UL/CSA |
|---|---|
| Fuse Interrupting Rating | 10kA |
| Battery Type | 6 x NEDA 15F IEC R6 JIS UM-3 Alkaline |
| DC Voltage Accuracy | ±0.5% ±1 digits |
| AC Voltage Accuracy | ±0.8% ±4 digits |
Only qualified personnel should perform repairs or servicing, and verification tests should only be done by those qualified to do so.
The required fixed resistors are 0Ω, 5Ω, 19Ω, 190Ω, 0.0MΩ, 1MΩ, 10MΩ, 100MΩ, and 1000MΩ.
It is recommended that all IDEAL meters undergo the calibration procedure on an annual basis.
