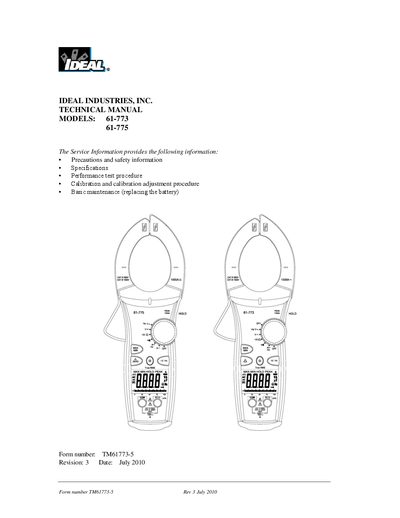

IDEAL 61-770 Series Commercial/Industrial TightSight Clamp Meters Technical Manual

This document introduces the specifications, performance test, calibration and basic maintenance of the 61-773 and 61-775 models.

Brand: IDEAL
Category: multimeter
Document type: Service Manual
Language: English
Pages: 11
File format: PDF
File size: 289 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: D25A967A3E2FFE7376A8D5228B987F6A
PDF: IDEAL 61-770 Series Commercial/Industrial TightSight Clamp Meters Technical Manual PDF

About this manual

This document is a technical manual for the IDEAL 61-773 and 61-775 TightSight series clamp meters. It provides essential service information including precautions, safety guidelines, and certification details for qualified personnel.

What's inside

Introduction
Precautions and Safety Information
Certifications and Compliance
General Specifications
RANGES and ACCURACY SPECIFICATION
Performance Verification
Calibration
Replacing the Battery

Specifications

Display	4 Digit LCD display
Sampling Rate	2.0 time/second
Operating Temperature	0°C to 50°C
Power Source	9V Battery (NEDA 1604)
Battery Life	100 hours typical (alkaline)
Maximum Cable Size	ACA 2.0" (1mm)
Weight	Approximately 1.1 lbs. or 500g
AC Voltage Range (61-773)	0.0V ~ 750.0V
AC Current Range	0.0A ~ 999.9A
Resistance Range	9.00 ~ 999.90, 10002 ~ 99990

Frequently asked questions

Who is qualified to perform verification tests or calibration?

Only qualified personnel should perform the verification tests or calibration procedures described in this manual.

What is the minimum battery voltage required for performance tests?

The battery must measure a minimum of 7.5V DC before beginning the performance test.

What is the maximum cable size for the 61-770 series?

The maximum cable size is 2.0 inches (1mm).
