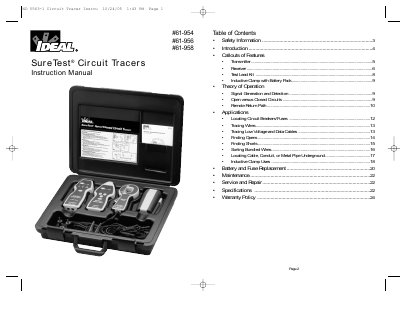

Ideal SureTest Circuit Tracers #61-954 #61-956 #61-958 Instruction Manual

This manual introduces the use of SureTest® Circuit Tracers.

Brand: IDEAL
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 12
File format: PDF
File size: 1009 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: BF827CA97B67FF8EFE857F6B9752726B
PDF: Ideal SureTest Circuit Tracers #61-954 #61-956 #61-958 Instruction Manual PDF

About this manual

The Ideal SureTest Circuit Tracers are versatile troubleshooting tools designed for finding circuit breakers, fuses, and hidden wire problems in residential, commercial, and industrial environments. The product line includes three configurations: the #61-954 with a 7-digit LED screen, the #61-956 with a rotating OLED display, and the #61-958 which adds an inductive clamp. These devices work on both energized and de-energized circuits.

What's inside

Safety Information
Introduction
Transmitter Features
Receiver Features
Theory of Operation
Applications
Test Lead Kit
Battery and Fuse Replacement
Maintenance
Specifications

Specifications

Operating Voltage Range	0 to 600V AC/DC
Safety Rating	Cat III-1000V
Transmitter Battery Type	4 AA batteries
Receiver Battery Type	3 AA batteries
Maximum Voltage Limit	600V AC/DC

Frequently asked questions

What is the maximum voltage the tracer can be used on?

The tracer should not be used on circuits with voltages in excess of 600V AC/DC.

How many batteries does the transmitter require?

The transmitter requires 4 AA batteries for maximum transmit power.

What is the safety rating for these circuit tracers?

The tracers are rated for use in Cat III-1000V environments.

Download PDF (1009 KB)
