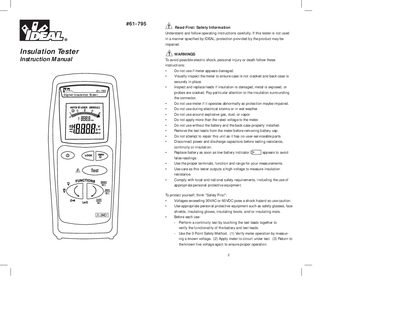

IDEAL 61-795 Digital Insulation Tester Instruction Manual

This manual introduces the use of 61-795 insulation resistance tester, including safety information, instrument operation, measurement methods, etc.

Brand: IDEAL
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 18
File format: PDF
File size: 1.4 MB
Published: 04 July, 2012
Updated: 01 October, 2023
MD5 checksum: AFFA3021FA0F4294FBB6D6C448FB2857
PDF: IDEAL 61-795 Digital Insulation Tester Instruction Manual PDF

About this manual

The IDEAL 61-795 is a digital insulation tester designed for measuring AC/DC voltage, resistance, continuity, and insulation resistance. The device features autoranging, a backlit LCD display, and multiple test voltage options (250V, 500V, and 1000V) for insulation testing. It includes safety features such as auto power-off and low battery indicators to ensure user protection during electrical measurements.

What's inside

Safety Information
Functions
Buttons
Voltage - AC/DC
Resistance (Ω)/Continuity
Insulation Resistance
Battery & Fuse Replacement
Ranges & Accuracies
Maintenance
Warranty Statement

Specifications

Display	9999 Count/4" LCD
Refresh Rate	≥ 2.0x/sec.
Batteries	(6) 1.5V AA LR6
Weight	15.9 oz (450g)
Size	9.4"H x 3.9"W x 1.8"D

Frequently asked questions

How do I defeat the auto power off (APO) feature?

Press the LOCK key to defeat APO and set the time period while in insulation testing mode.

What is the accuracy for AC voltage measurement?

The accuracy for AC voltage is ±(0.8% + 4) of the reading.

What safety equipment should be used for voltages exceeding 30VAC or 60VDC?

Use appropriate personal protective equipment such as safety glasses, face shields, insulating gloves, insulating boots, and/or insulating mats.
