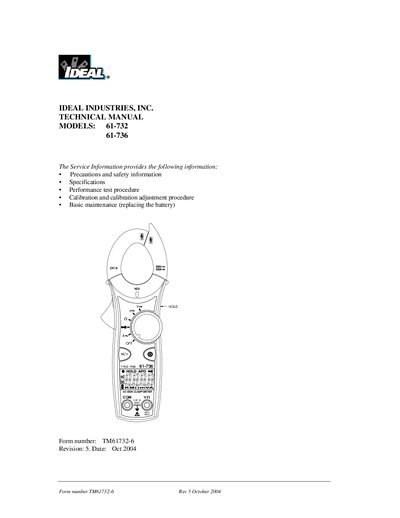

Ideal Industries 61-732/61-736 Multimeter Service Manual

This document is a technical manual for 61-732 61-736 multimeter, which contains product introduction, performance test, calibration and maintenance information

Brand: IDEAL
Category: multimeter
Document type: Service Manual
Language: English
Pages: 11
File format: PDF
File size: 192 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: FFB56C80E1EE3EF43163FF6FCD09A828
PDF: Ideal Industries 61-732/61-736 Multimeter Service Manual PDF

About this manual

This document serves as a technical manual for the Ideal Industries 61-732 and 61-736 digital multimeter models. It provides essential service information including precautions, safety guidelines, detailed electrical specifications, and certification compliance data.

The guide outlines procedures for qualified personnel to perform performance verification tests using specific calibrator inputs and limits. Additionally, it details the annual calibration procedure and instructions for replacing batteries to maintain device functionality.

What's inside

Precautions and Safety Information
Certifications and Compliance
General Specifications
Voltage and Current Specifications
Performance Verification Procedures
Calibration Procedure
Replacing the Batteries

Specifications

Display Count	4000 count, maximum reading 3999
Sampling Rate	2.0 times/second
Power Source	1.5V Battery x 2 (RO3/Size AAA)
Battery Life (61-732)	400 hours typical (alkaline)
Battery Life (61-736)	250 hours typical (alkaline)
Auto Power Off	Approximately 10 minutes

Frequently asked questions

What is the recommended battery type for these multimeters?

Alkaline batteries are recommended.

When should calibration be performed on these meters?

It is recommended that all IDEAL meters undergo the following calibration procedure on an annual basis.
