This document is an instruction manual for the 400 AAC Clamp Meter, providing information on how to use it, safety precautions, and features and characteristics of the product.

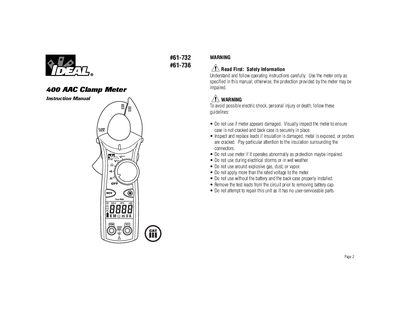

This document is the instruction manual for the IDEAL 61-732 and 61-736 400 AAC clamp meters. It details safety warnings, features such as non-contact voltage detection and data hold, and provides step-by-step instructions for measuring AC current, voltage, resistance, and continuity. The manual distinguishes between the averaging sensing of the 61-732 model and the true RMS sensing of the 61-736 model.
| Display | 3-3/4 digit LCD with 4000 counts |
|---|---|
| Auto Power Off | Approximately after 10 minutes of non-use |
| Battery Life (61-732) | 400 hours continuous with Alkaline |
| Battery Life (61-736) | 250 hours continuous with Alkaline |
| Power Supply | 2 1.5V AAA batteries |
| Jaw Opening | Accepts a 1.25 inch conductor |
The 61-732 model uses averaging sensing which is rms calibrated, while the 61-736 model uses true rms sensing.
Insert the NCV tab into each slot; the beeper will be much louder on the hot side than the neutral side.
The low battery indicator symbol will be displayed on the screen.
