This document describes the features and characteristics of the 3-Phase Tester & Motor Rotation Tester #61-521, including three functions in one unit: open phase, phase sequence, and motor rotation indication. This model is ideal for installing conveyor lines, pump systems, and other applications where motor rotation needs to be detected.

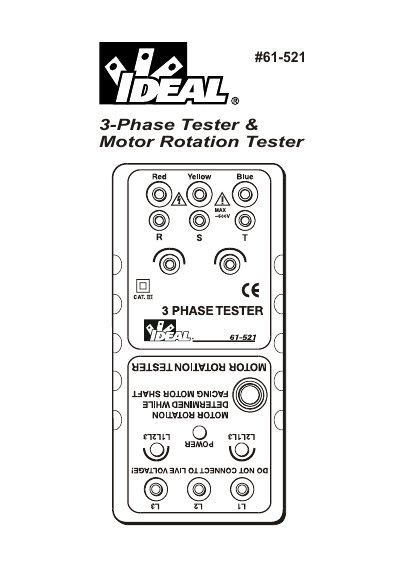

This manual provides instructions for the IDEAL 61-521, a battery-operated device designed to check open phase, phase sequence, and motor rotation. It meets IEC 1010 safety requirements and includes three large alligator clips suitable for use in conveyor lines, pump systems, and interconnected drivers.
The document details the operating procedures for both the 3-Phase Rotation Tester and the Motor Rotation Tester, including how to identify open phases and verify motor rotation direction. It also covers safety notes, specifications, maintenance instructions for battery and fuse replacement, and warranty information provided by IDEAL INDUSTRIES, INC.
| Input Voltage | 100V AC up to 600V AC max. |
|---|---|
| Frequency | 45 to 70 Hz |
| Power Requirement | 006P DC9V battery |
| Power Consumption | approx. 14mA of motor rotation field of tester |
| Dimension | 153(L)x72(W)x35(D)mm |
| Weight | Approx. 182g Included battery |
The meter meets IEC 1010 (EN61010) safety requirements and is designed according to IEC Publication 348.
The device requires a 006P DC9V battery.
Unscrew the screws on the back, open the case, remove the broken fuse, and replace it with a new 200mA, 250V fuse.
The meter is warranted against defects in material or workmanship for one year following the purchase.
