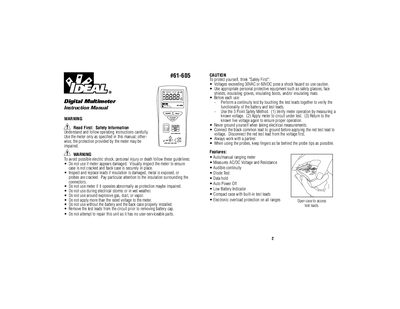

Digital Multimeter Instruction Manual
This document is the instruction manual for the IDEAL 61-605 Digital Multimeter. It provides essential safety warnings regarding electric shock and proper usage of test leads, along with a detailed description of features such as auto/manual ranging, data hold, audible continuity, and diode testing.
The guide explains how to operate the meter in various modes including AC/DC voltage measurement, resistance verification, and continuity testing. It also details battery replacement procedures, maintenance instructions, technical specifications, accuracy ranges, and warranty terms provided by IDEAL INDUSTRIES, INC.
| Display | 3-1/2 digit LCD with 2000 counts |
|---|---|
| Measurement Rate | 2 times per second, nominal |
| Auto Power Off Time | Approximately after 10 minutes of non-use |
| Battery Life | 70 hours continuous with alkaline |
| Power Supply | (2) 1.5V button cell batteries (NEDA 1166A, IEC LR-44) |
| Dimensions | 4.9"H x2.4'W x0.9"D (125mm H x60mm W x24mm D) |
| Weight | 3.9.0z (1109) |
Press the Mode Switch button to toggle between AC and DC in the voltage measurement mode.
The nominal response time for the meter is 500ms.
Press the Hold button on the meter to toggle in and out of the data hold mode, which locks a measurement reading on the display.
