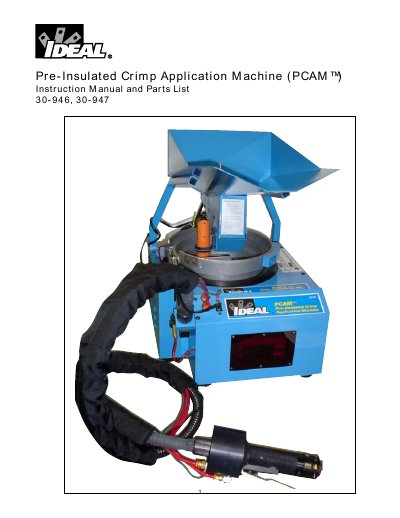

This manual introduces the use, maintenance and troubleshooting information of the Pre-Insulated Crimp Application Machine (PCAM™) product.
The Pre-Insulated Crimp Application Machine (PCAM™) is a computer-controlled device designed to quickly and firmly apply IDEAL Pre-Insulated Crimp Connectors to various conductor types. It ensures the integrity and consistency of electrical connections, operating faster than manual assembly for pig-tail type connectors.
This document serves as an instruction manual covering general coverage, equipment setup (unpacking, assembly, mounting), operational instructions, maintenance service programs, troubleshooting guides, a detailed parts list, and diagnostic procedures.
| Total Cycle Time | 4 Seconds |
|---|---|
| Electrical Supply | 120 V AC 60 Hz |
| Compressed Air Supply | 80-90 PSI Regulated & Dry |
| Dimensions | 15" Deep x 13-5/8" Wide x 9-7/8" High |
| Shipping Weight | 59 lbs. |
A minimum of 80 PSI clean dry compressed air is essential for proper machine function.
No, you must use only IDEAL Pre-Insulated Crimp Connectors and should not mix different sizes.
The Foot Switch can be used in place of the hand gun trigger.
