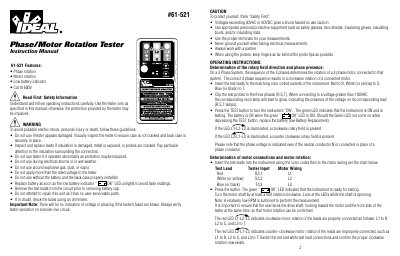

This document is the instruction manual for the 61-521 Phase/Motor Rotation Tester. The tester features phase rotation, motor rotation, low battery indicator, and Cat III 600V.
This document is the instruction manual for the IDEAL 61-521 Phase/Motor Rotation Tester. It provides safety guidelines, operating instructions for determining phase rotation and motor rotation, and details on battery and fuse replacement. The manual also includes maintenance tips and warranty information.
| Nominal Voltage for Phase Presence Indication | 100 - 600VAC (10-400Hz) |
|---|---|
| Phase Rotary Field Direction | 1– 600VAC (2-400Hz) |
| Determination of Motor Rotation | 1-600VAC (2-400Hz) |
| Over Load Protection | 550V (between all terminals) |
| Fuses | 5 x 20mm, 200mA/ 250V fuse |
| Battery | (1) 9V, IEC 6LR61 |
| Current Consumption | Max 18 mA |
| Size | 6.0”Hx2.8”Wx1.4”D (151mmHx72mmW x 35 mmD) |
| Weight | 6.4oz (181g) including battery |
| Operating Temperature Range | 5ºF to 131ºF (-15°C to + 55°C) |
| Storage Temperature | -4ºF to 158ºF (-20°C to + 70°C) |
| Safety Category | Cat III – 600V |
| Warranty Period | two years |
The tester requires one 9V battery, specifically IEC 6LR61.
The low battery indicator is triggered when the green “OK” LED unlights.
The tester uses a 5 x 20mm, 200mA/250V fuse.
No, the unit has no user-serviceable parts and should not be repaired by the user.
