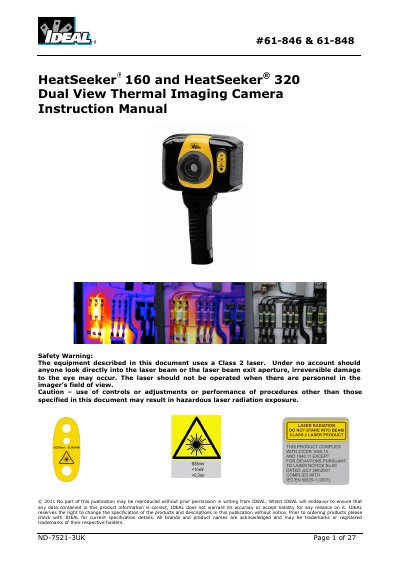

This manual provides instructions on how to use the HeatSeeker 160 and HeatSeeker® 320 Dual View Thermal Imaging Camera.
This manual provides instructions for the IDEAL HeatSeeker 61-846 and 61-848 Dual View Thermal Imaging Cameras. It covers safety warnings regarding the Class 2 laser, setup procedures, and detailed operation of the main controls including function keys, navigation, and image blending modes.
| Field of View | 20° X 15° for 61-846EU and 21.4° X 16° for 61-848 |
|---|---|
| Focus | Manual |
| Minimum Focus | 30cm |
| Spectral response | 8µm to 14µm |
| Thermal Sensitivity | NETD ≤80mK (0.08°C) |
| Detector | 160×120 for 61-846EU and 320x240 for 61-848 |
| Measurement Temperature range | -10°C to +250°C |
| Display | 3 ½” colour LCD with LED backlight |
| Weight | 0.8Kg |
| Mounting | Handheld & tripod mounting |
A fully charged battery will last approximately 5 hours.
The accuracy is the greater of ±2°C or ±2% of reading in °C for the operating temperature range of -15°C to +45°C.
Press and hold the on/off button for two seconds to switch on, and for three seconds to switch off.
