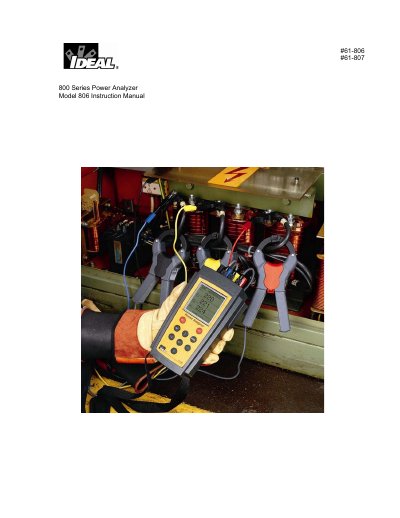

IDEAL 800 Series Power Analyzer Model 806 Instruction Manual

This document is the instruction manual for the 800 Series Power Analyzer Model 806, providing basic operating instructions, safety precautions, and features and characteristics of the product.

Brand: IDEAL
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 48
File format: PDF
File size: 561 KB
Published: 04 July, 2012
Updated: 29 September, 2023
MD5 checksum: 68321C400E5104872D8F1379950E8B35
PDF: IDEAL 800 Series Power Analyzer Model 806 Instruction Manual PDF

About this manual

This manual provides instructions for the IDEAL Model 806 Power Analyzer, a versatile tool for measuring and analyzing power quality on single- and three-phase electrical systems. It includes details on safety, display features, and the standard Energy and Harmonics program.

What's inside

Basic instructions
Model 806 features
Startup
Model 806 display screens
Programming the 806
Hooking up the analyzer
Recording data
Downloading data to your PC
PowerVision Software
Technical specifications

Specifications

Display	160x160 pixel LCD
Memory	1 MB
Battery	Rechargeable Ni-Cad
Voltage limit (phase-to-neutral)	500 V
Voltage limit (phase-to-phase)	866V
Harmonics	to 51st harmonic

Frequently asked questions

What programs come standard with the Model 806?

The Energy and Harmonics program comes standard with the IDEAL Power Analyzer.

How do I turn off the display backlight?

Press the off key quickly to turn the backlight off.

What happens if no key is pressed for 5 minutes?

The display will automatically go blank to conserve power, but data recording continues.
