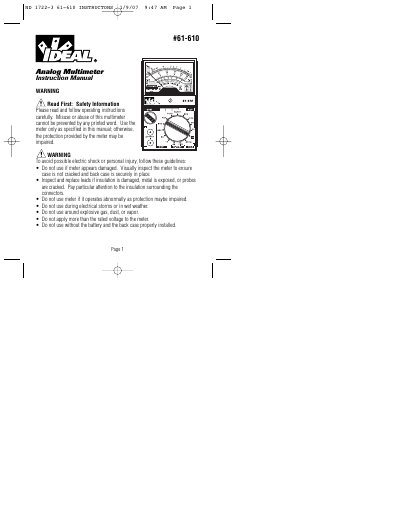

IDEAL 61-610 Analog Multimeter Instruction Manual

This document is an instruction manual for an analog multimeter, providing safety precautions and operating instructions.

Brand: IDEAL
Category: multimeter
Document type: User Manual
Language: English
Pages: 28
File format: PDF
File size: 266 KB
Published: 04 July, 2012
Updated: 28 September, 2023
MD5 checksum: 0EBE83B2E86BB4F3A9AED4BD8E90DE2E
PDF: IDEAL 61-610 Analog Multimeter Instruction Manual PDF

About this manual

The IDEAL 61-610 is a pocket-sized, lightweight analog multimeter designed for measuring AC/DC voltage, DC current, resistance, and performing battery checks. It features a mirrored scale to reduce parallax error, recessed input terminals for safety, and a diode-protected meter movement. The device operates using a single 1.5V AA battery and includes a fast-acting fuse for protection.

What's inside

Safety Information
Measurement Procedure
Measuring AC Voltage
Measuring DC Voltage
Measuring DC Current
Measuring Resistance
Battery Check
Decibel Measurement
Maintenance
Specifications

Specifications

Fuse Rating	0.25A, 250V, 5mm x 20mm
Battery Type	1.5V AA type
Operating Temperature	0°C to 50°C
Dimensions	100mm H x 63mm W x 34mm D
Weight	102g

Frequently asked questions

What battery does the IDEAL 61-610 require?

The meter requires one 1.5V AA type battery for operation.

What fuse is used in the IDEAL 61-610?

It uses an IDEAL #F-16 fuse with a rating of 0.25A, 250V, and 5mm x 20mm dimensions.

What is the warranty period for this multimeter?

The instrument is warranted against defects in material and workmanship for five years.
