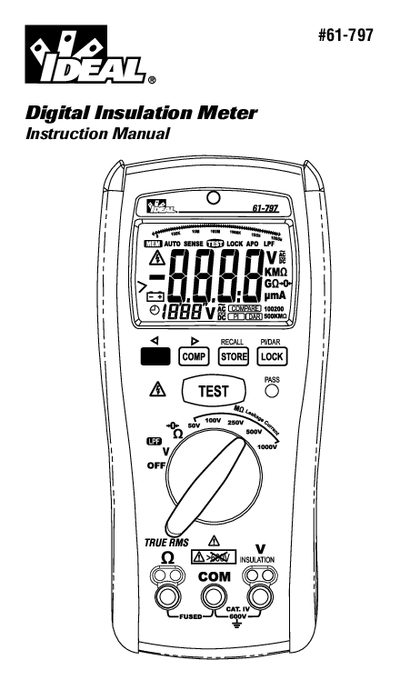

IDEAL 61-797 Digital Insulation Meter Instruction Manual

About this manual

This document is the instruction manual for the IDEAL 61-797 Digital Insulation Meter. It provides essential safety warnings, including precautions for high voltage and explosive environments, and outlines the proper use of personal protective equipment.

The manual details the meter's features, such as auto-sense voltage measurement, insulation resistance testing, and the calculation of Polarization Index (PI) and Dielectric Absorption Ratio (DAR). It also explains how to use the store and recall functions for data logging and how to replace batteries and fuses.

What's inside

• Safety Information
• Instrument Description
• Measuring ACV/DCV
• Measuring Insulation Resistance
• Measuring Earth-Bond Resistance
• Using the Compare Function
• Measuring PI/DAR
• Using the Store Function
• Battery and Fuse Replacement

Specifications

Frequently asked questions

What happens if the measured voltage is above 660 V ac/dc?

The meter will display ">660Vac/dce" on the screen.

How is the Polarization Index (PI) calculated?

PI is calculated by dividing the insulation resistance measured at the 10-minute mark by the resistance measured at the 1-minute mark.

What indicates a good insulation reading for PI or DAR?

A reading where PI is bigger than 2 or DAR is bigger than 1.3 indicates good insulation.
