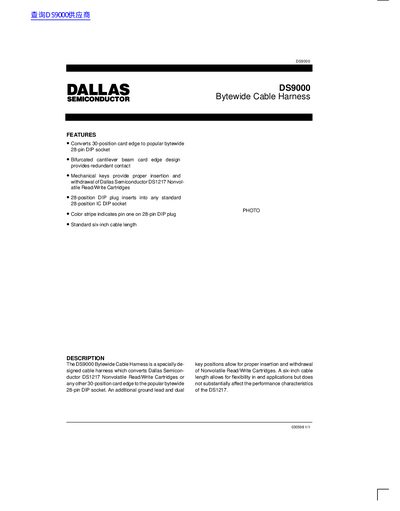

The DS9000 Bytewide Cable Harness is a specially designed cable harness which converts Dallas Semiconductor DS1217 Nonvolatile Read/Write Cartridges or any other 30-position card edge to the popular bytewide 28-pin DIP socket. It features a bifurcated cantilever beam card edge design with redundant contact and mechanical keys for proper insertion and withdrawal of Nonvolatile Read/Write Cartridges. The six-inch cable length allows for flexibility in end applications and does not substantially affect the performance characteristics of the DS1217.
The DS9000 Bytewide Cable Harness is a specialized cable harness designed by Dallas Semiconductor. It facilitates the connection of Dallas Semiconductor DS1217 Nonvolatile Read/Write Cartridges or other 30-position card edge devices into standard 28-pin IC DIP sockets.
| Connector Conversion | Converts 30-position card edge to popular bytewide 28-pin DIP socket |
|---|---|
| Contact Design | Bifurcated cantilever beam card edge design provides redundant contact |
| Cable Length | Standard six-inch cable length |
It converts Dallas Semiconductor DS1217 Nonvolatile Read/Write Cartridges or any other 30-position card edge to the popular bytewide 28-pin DIP socket.
Mechanical keys provide proper insertion and withdrawal, along with an additional ground lead and dual key positions.
