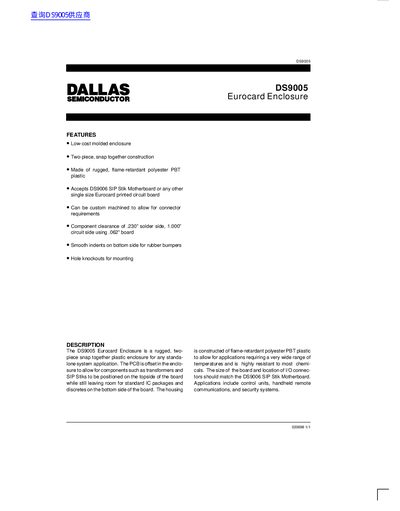

Dallas Semiconductor DS9005 Eurocard Enclosure Product Data Sheet

The DS9005 Eurocard Enclosure is a rugged, two-piece plastic enclosure that is manufactured by DEASKON.

Brand: Dallas Semiconductor
Category: Other Electronics
Document type: Product Leaflet
Language: English
Pages: 1
File format: PDF
File size: 16 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: D5008FF56D4EC045EDF414181E11DC97
PDF: Dallas Semiconductor DS9005 Eurocard Enclosure Product Data Sheet PDF

About this manual

The DS9005 is a Eurocard enclosure manufactured by Dallas Semiconductor. It features a low-cost molded construction made of flame-retardant polyester PBT plastic in a two-piece, snap-together design. The enclosure accepts the DS9006 SIP Stik Motherboard or any other single-size Eurocard printed circuit board.

What's inside

Features
Description

Frequently asked questions

What material is the DS9005 Eurocard Enclosure made of?

The enclosure is made of rugged, flame-retardant polyester PBT plastic.

What is the component clearance on the solder side of the board?

The component clearance is .230" on the solder side.

What applications are suitable for the DS9005 Eurocard Enclosure?

Suitable applications include control units, handheld remote communications, and security systems.
