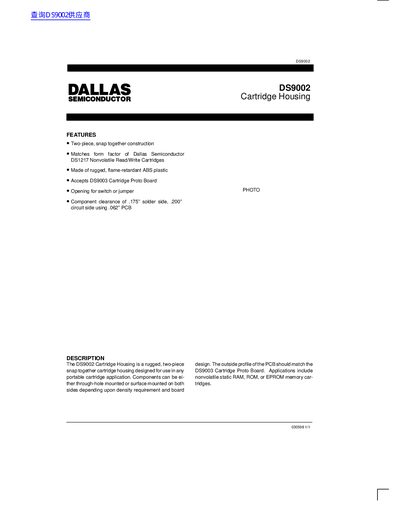

The DS9002 Cartridge Housing is a rugged, two-piece snap together cartridge housing designed for use in any portable cartridge application. Components can be either through-hole mounted or surface mounted on both sides depending upon density requirement and board design. The outside profile of the PCB should match the DS9003 Cartridge Proto Board. Applications include nonvolatile static RAM, ROM, or EPROM memory cartridges.
The DS9002 Cartridge Housing is a rugged, two-piece design made of flame-retardant ABS plastic. It features a snap-together construction that matches the form factor of the DS1217 Nonvolatile Read/Write Cartridges.
| Construction | Two-piece, snap together |
|---|---|
| Material | flame-retardant ABS plastic |
| Compatibility | DS9003 Cartridge Proto Board |
| Component Clearance | .175" solder side, .200" circuit side |
The housing is constructed from rugged, flame-retardant ABS plastic.
The housing requires .175" clearance on the solder side and .200" clearance on the circuit side when using a .062" PCB.
