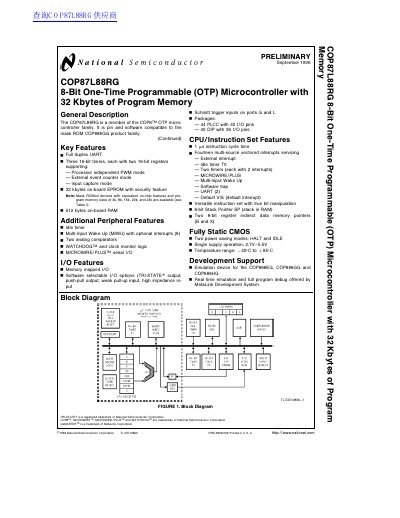

National Semiconductor COP87L88RG Datasheet

The COP87L88RG is a member of the COP8TM OTP microcontroller family with 32 Kbytes of program memory. It is pin and software compatible to the mask ROM COP888GG product family.

Brand: National Semiconductor
Category: microcontrollers
Document type: Datasheet
Language: English
Pages: 40
File format: PDF
File size: 445 KB
Published: 04 July, 2012
Updated: 28 September, 2023
MD5 checksum: 0CCAF4481667A8C5F830D37D5A19BE18
PDF: National Semiconductor COP87L88RG Datasheet PDF

About this manual

The COP87L88RG is an 8-bit One-Time Programmable (OTP) microcontroller from the COP8 family. It features 32 kbytes of on-board EPROM and 512 bytes of RAM. The device is pin and software compatible with the mask ROM COP888GG product family and operates on a single supply voltage of 2.7V to 5.5V.

What's inside

General Description
Key Features
Absolute Maximum Ratings
DC Electrical Characteristics
AC Electrical Characteristics
Pin Descriptions
I/O Features
CPU/Instruction Set Features

Specifications

Program Memory	32 kbytes
RAM	512 bytes
Timers	Three 16-bit timers
Operating Voltage	2.7V to 5.5V
Temperature Range	-40°C to +85°C
Instruction Cycle Time	1 µs

Frequently asked questions

Is the COP87L88RG compatible with other COP8 models?

Yes, it is pin and software compatible to the mask ROM COP888GG product family.

What are the available package types?

The device is available in 44-pin PLCC and 40-pin DIP packages.
