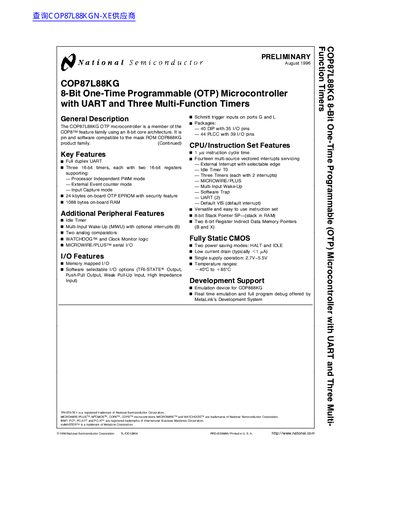

COP87L88KG 8-bit OTP microcontroller with UART and Three Multi-Function Timers
The COP87L88KG is an 8-bit One-Time Programmable (OTP) microcontroller from National Semiconductor's COP8™ feature family. It utilizes an 8-bit core architecture and is pin and software compatible with the mask ROM COP888KG. The device is fabricated using double-metal silicon gate microCMOS technology and operates as a fully static part.
Key features include a full duplex UART, three 16-bit timers supporting PWM, external event counting, and input capture modes, and two analog comparators. The microcontroller offers 24 kbytes of on-board OTP EPROM and 1088 bytes of RAM. It supports two power-saving modes (HALT and IDLE) and operates on a single supply voltage ranging from 2.7V to 5.5V.
| Core Architecture | 8-bit |
|---|---|
| On-board OTP EPROM | 24 kbytes |
| On-board RAM | 1088 bytes |
| Supply Voltage Range | 2.7V-5.5V |
| Instruction Cycle Time (Typical) | 1 µs |
| Timers | Three 16-bit timers |
| Analog Comparators | Two |
| UART | Full duplex |
| Power Saving Modes | HALT and IDLE |
| Package Types | 40-pin DIP, 44-pin PLCC |
The maximum operating voltage is 5.5V.
Yes, it includes WATCHDOG™ and Clock Monitor logic.
Yes, it is pin and software compatible to the mask ROM COP888KG.
