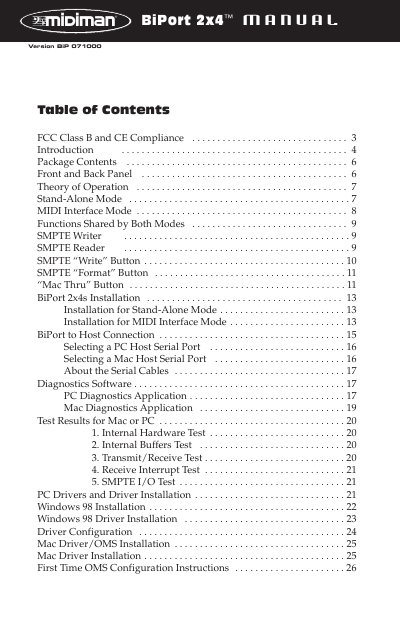

This document provides information about FCC Class B and CE compliance, package contents, front and back panel, theory of operation, stand-alone mode, and MIDI interface mode.
The MIDIMAN BiPort 2x4s is an external interface that attaches to standard PC serial ports or Macintosh printer/modem ports. It operates as a MIDI interface and a stand-alone SMPTE reader/writer/regenerator, offering four independent MIDI Outs and two MIDI Ins. The device features large data buffers to ensure full MIDI throughput and supports various SMPTE time code formats.
| MIDI Outputs | Four independent MIDI Outs |
|---|---|
| MIDI Inputs | Two MIDI Ins |
| MIDI Output Channels | 64 channels |
| MIDI Input Channels | 32 channels |
| Power Supply | DC 9 volt, 500 mA |
| Connector Type | 9-pin mini DIN |
It operates as a MIDI interface and a stand-alone SMPTE reader/writer/regenerator.
Yes, the 9-pin mini DIN connector works with both PC and Mac computers.
It supports all standard time code formats including 24, 25, 29.97, 30-drop, and 30 non-drop.
