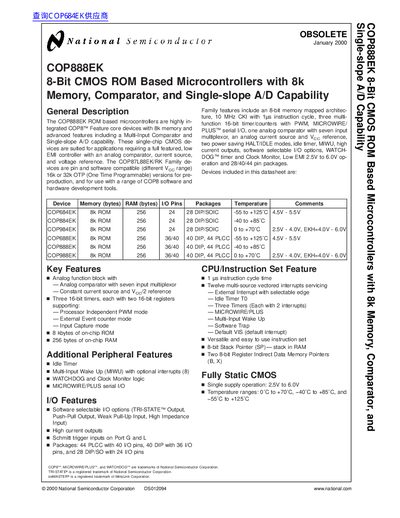

COP888EK 8-Bit CMOS ROM Based Microcontrollers with 8k Memory, Comparator, and Single-slope A/D Capability
The COP888EK is an 8-bit CMOS ROM-based microcontroller designed for applications requiring a full-featured, low EMI controller with integrated analog capabilities. It includes an 8k memory mapped architecture, 10 MHz instruction cycle time, and three multi-function 16-bit timer/counters with PWM support.
Key features include a single-slope A/D converter, a multi-input comparator with a seven-input multiplexor, and a constant current source with voltage reference. The device supports two power-saving modes (HALT and IDLE), a watchdog timer, and operates on a single supply voltage ranging from 2.5V to 6.0V.
| Memory (ROM) | 8k bytes |
|---|---|
| Memory (RAM) | 256 bytes |
| Instruction Cycle Time | 1 us |
| Operating Voltage | 2.5V to 6.0V |
| Packages | 28/40/44 pin |
| Temperature Range | -40 to +85°C |
The COP888EK has a 1 us instruction cycle time.
The device operates on a single supply voltage from 2.5V to 6.0V.
Yes, it includes an analog comparator with a seven input multiplexor.
