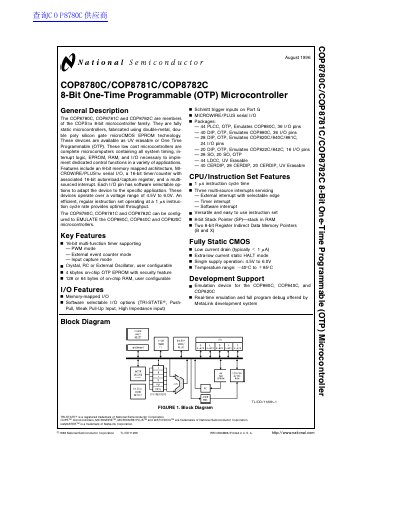

The COP8780C, COP8781C, and COP8782C are members of the COPS 8-bit microcontroller family. They are fabricated using double-metal, double poly silicon gate microCMOS EPROM technology. These low-cost microcontrollers are complete microcomputers containing all system timing, interrupt logic, EPROM, RAM, and I/O necessary to implement dedicated control functions in a variety of applications. Features include an 8-bit memory mapped architecture, MICROWIRE PLUS serial I/O, a 16-bit timer/counter with associated 16-bit autoreload/capture register, and a multi-sourced interrupt. Each I/O pin has software selectable options to adapt the device to the specific application. These devices operate over a voltage range of 4.5V to 6.0V and have an efficient, regular instruction set operating at a 1 ms instruction cycle rate for optimal throughput. The COP8780C, COP8781C, and COP8782C can be configured to emulate the COP880C, COP840C, and COP820C microcontrollers.
The COP8780C, COP8781C, and COP8782C are fully static 8-bit microcontrollers fabricated using double-metal, double poly silicon gate microCMOS EPROM technology. These devices are available as UV erasable or One Time Programmable (OTP) and are designed to implement dedicated control functions in a variety of applications. They feature an 8-bit memory mapped architecture, MICROWIRE/PLUS serial I/O, and a 16-bit timer/counter with associated 16-bit autoreload/capture register.
| Operating Voltage | 4.5V to 6.0V |
|---|---|
| Supply Current (CKI = 10 MHz) | 1 mA |
| HALT Current | 10 pA |
| Instruction Cycle Time | 1 µs |
| On-chip RAM | 128 or 64 bytes |
| On-chip EPROM | 4 kbytes |
| Temperature Range | -40°C to +85°C |
| Supply Voltage (Vcc) Absolute Max | 7V |
Yes, they can be configured to emulate the COP880C, COP840C, and COP820C microcontrollers.
The instruction set operates at a 1 µs instruction cycle rate.
Available packages include 44 PLCC, 40 DIP, 28 DIP, 20 DIP, 28 SO, 20 SO, 44 LDCC, and various CERDIP options.
