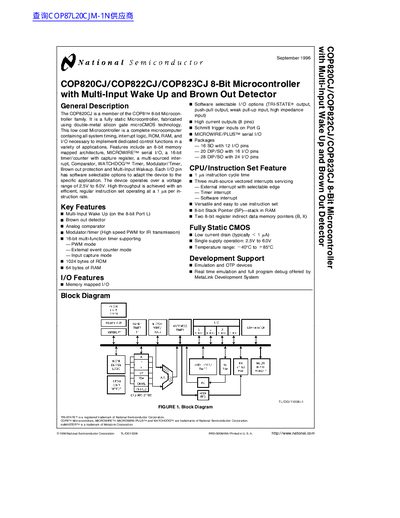

COP820CJ 8-Bit Microcontroller with Multi-Input Wake Up and Brown Out Detector
The document describes the COP820CJ, COP822CJ, and COP823CJ as members of the COP8™ 8-bit Microcontroller family. These fully static microcontrollers are fabricated using double-metal silicon gate microCMOS technology and operate over a voltage range of 2.5V to 6.0V.
Key features include an 8-bit memory-mapped architecture, MICROWIRE™ serial I/O, a 16-bit timer/counter with capture register, a multi-sourced interrupt system, a comparator, a WATCHDOG™ Timer, and Brown out protection. The devices support various package options including 16-pin SO, 20-pin DIP/SO, and 28-pin DIP/SO.
| Operating Voltage Range | 2.5V to 6.0V |
|---|---|
| ROM Size | 1024 bytes |
| RAM Size | 64 bytes |
| Instruction Cycle Time (Crystal) | 1 µs |
| Supply Current (Typical, CKI=10MHz, Vcc=6V) | 6.0 mA |
| Storage Temperature Range | -65°C to +150°C |
The device operates over a voltage range of 2.5V to 6.0V.
The absolute maximum supply voltage is 7.0V.
The power supply ripple is 0.1V peak to peak.
