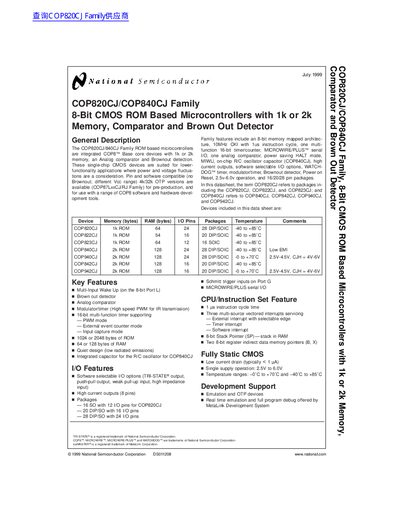

COP820CJ/COP840CJ Family 8-Bit CMOS ROM Based Microcontrollers with 1k or 2k Memory, Comparator and Brown Out Detector
The COP820CJ/COP840CJ Family consists of 8-bit CMOS ROM-based microcontrollers integrated with a COP8 base core, 1k or 2k memory, an analog comparator, and a Brownout detector. These single-chip devices are designed for lower-functionality applications where power consumption and voltage fluctuations are significant considerations. The family includes devices with 1k or 2k ROM and 64 or 128 bytes of RAM, available in 16, 20, and 28-pin DIP and SOIC packages.
| Memory (ROM) | 1k or 2k bytes |
|---|---|
| Operating Voltage | 2.5V to 6.0V |
| Instruction Cycle Time | 1 us |
| Clock Frequency | 10 MHz |
| Temperature Range | -40 to +85°C |
| Packages | 16/20/28 pin |
| Supply Current (Typical) | 6.0 mA |
The instruction cycle time is 1 us when using a 10 MHz clock.
The devices operate on a single supply of 2.5V to 6.0V.
Yes, the family includes an integrated Brownout detector.
