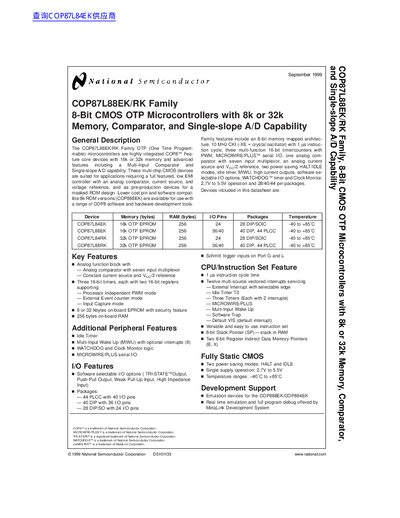

The COP87L88EK/RK Family OTP microcontrollers are highly integrated COP8™ Feature core devices with 16k or 32k memory and advanced features including a Multi-Input Comparator and Single-slope A/D capability. These multi-chip CMOS devices are suited for applications requiring a full featured, low EMI controller with an analog comparator, current source, and voltage reference, and as pre-production devices for a masked ROM design.
The COP87L88EK/RK Family consists of highly integrated 8-bit CMOS OTP (One Time Programmable) microcontrollers designed for applications requiring a full-featured, low EMI controller. These devices include advanced features such as a multi-input comparator, single-slope A/D capability, and various peripheral functions like timers and serial I/O. They are available in 8k and 32k memory versions with security features and are compatible with a range of COP8 software and hardware development tools.
Key specifications include an 8-bit memory-mapped architecture, a 10 MHz clock input (CKI) with a 1 µs instruction cycle, and three multi-function 16-bit timer/counters supporting PWM and input capture modes. The devices operate on a single supply voltage ranging from 2.7V to 5.5V and are available in 28, 40, and 44-pin packages. They feature two power-saving modes (HALT and IDLE), a watchdog timer, and a versatile instruction set.
| Memory (OTP EPROM) | 8k or 32k bytes |
|---|---|
| RAM | 256 bytes |
| Operating Voltage | 2.7V to 5.5V |
| Clock Input Frequency | 10 MHz |
| Timers | Three 16-bit timers |
| Analog Features | Comparator and Single-slope A/D |
| Temperature Range | -40°C to +85°C |
The family includes devices with 8k or 32k bytes of on-board EPROM memory.
The devices support a single supply operation ranging from 2.7V to 5.5V.
Yes, the family features a WATCHDOG timer and Clock Monitor logic.
