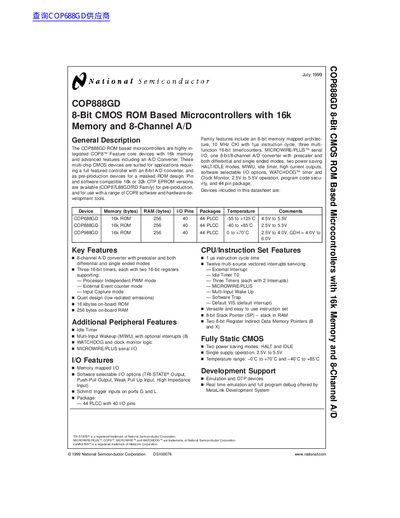

COP888GD is a ROM-based microcontroller with 16k memory and 8-channel A/D converter, which is a highly integrated, feature-rich microcontroller. It is suitable for applications requiring a full-featured controller with an 8-bit A/D converter, and as a pre-production device for a masked ROM design.
The COP888GD is a highly integrated 8-bit CMOS ROM-based microcontroller designed for applications requiring a full-featured controller with an 8-bit A/D converter. It features a 16k memory architecture, 256 bytes of RAM, and operates with a 1 microsecond instruction cycle time at 10 MHz. The device includes three 16-bit timers, a MICROWIRE/PLUS serial I/O, and supports a supply voltage range of 2.5V to 5.5V.
| Memory (ROM) | 16k bytes |
|---|---|
| Memory (RAM) | 256 bytes |
| A/D Channels | 8-channel |
| Instruction Cycle Time | 1 us |
| Operating Voltage | 2.5V to 5.5V |
| Package | 44 PLCC |
| Timers | Three 16-bit timers |
The device supports a single supply operation ranging from 2.5V to 5.5V.
It contains three 16-bit timers, each with two 16-bit registers.
The instruction cycle time is 1 microsecond at 10 MHz.
