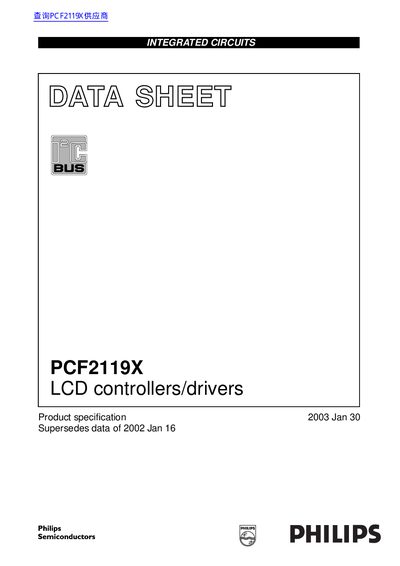

This document is the datasheet of Philips PCF2119X, a LCD controller/driver
The Philips PCF2119X is a low-power CMOS integrated circuit designed to drive dot matrix LCD displays with 2 lines of 16 characters or 1 line of 32 characters. It features an extended instruction set, on-chip character generator ROM (CGROM) and RAM (CGRAM), and supports both parallel and I²C-bus interfaces.
| Display capacity (2-line) | 16 characters + 160 icons |
|---|---|
| Display capacity (1-line) | 32 characters + 160 icons |
| Character format | 5x7 or 5 x 8 dot format |
| Display Data RAM size | 80 characters |
| Character Generator ROM capacity | 240, 5 x 8 characters |
| Logic supply voltage range | 1.5 to 5.5 V |
| Display supply voltage range | 2.2 to 6.5 V |
The device is designed for use in telecom equipment, portable instruments, and point-of-sale terminals.
No, the on-chip oscillator requires no external components, though an external clock is also possible.
It supports a 4 or 8-bit parallel bus and a 2-wire I²C-bus interface.
