PDZ-B series is a low-power general purpose voltage regulator diodes in a small plastic SMD SOD323 package, with a maximum power dissipation of 400 mW and a wide voltage range of 2.4 to 36 V.

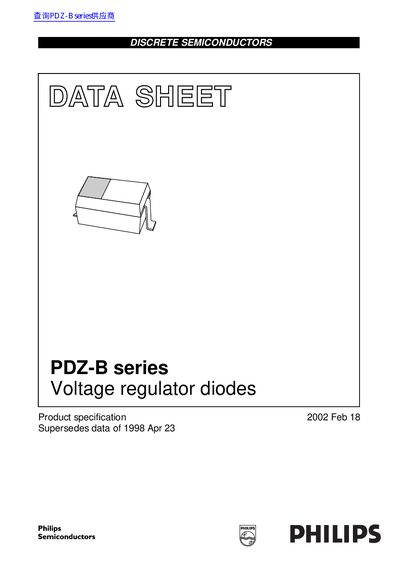

This document is a product specification datasheet for the Philips PDZ-B series of voltage regulator diodes. These are low-power, general-purpose devices designed for surface-mounted designs in a small plastic SOD323 package. The series offers a wide variety of voltage ranges from 2.4V to 36V with a tolerance of approximately +2%.
| Total power dissipation | max. 400 mW |
|---|---|
| Package type | SOD323 |
| Voltage ranges | nom. 2.4 to 36 V |
| Tolerance | approximately +2% |
| Junction temperature | - 150 °C |
The devices are in a small plastic SMD SOD323 package suitable for surface mounted design.
The series offers a wide variety of voltage ranges from a nominal 2.4 V to 36 V.
The maximum total power dissipation is 400 mW when the ambient temperature is 25 °C.
