This document introduces a single-column technique for analyzing carbon, sulfur, and nitrogen compounds in a gaseous matrix. The analysis is performed with an Agilent 6890 gas chromatograph (GC) and an Agilent G2350A atomic emission detector (AED). An Agilent 30 m × 0.53 mm × 5 µm J&W DB-1 capillary column is used for separation.

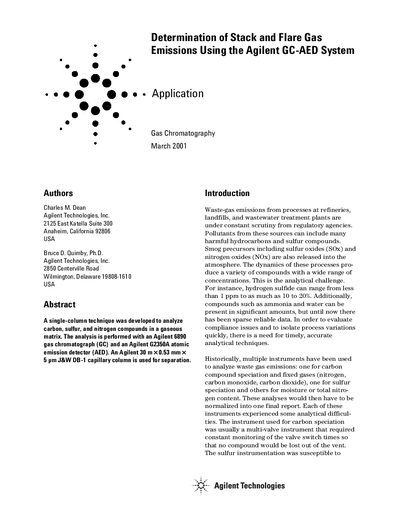

This document details an analytical method developed by Agilent Technologies to determine stack and flare gas emissions. The technique utilizes a single-column setup with an Agilent 6890 gas chromatograph coupled to a G2350A atomic emission detector (AED) to analyze carbon, sulfur, and nitrogen compounds in a gaseous matrix. The method addresses the need for timely and accurate analysis of pollutants like hydrocarbons, sulfur oxides, and nitrogen oxides from sources such as refineries and wastewater treatment plants.
| Gas Chromatograph | Agilent 6890 |
|---|---|
| Detector | Agilent G2350A AED |
| Column | 30 m x 0.53 mm x 5.0 um J&W DB-1 |
| Oven Initial Temperature | -46 °C |
| Oven Ramp Rate | 8 °C/min to 50 °C |
| Oven Final Temperature | 296 °C |
| Column Pressure | 3 psi |
The analysis is performed with an Agilent 6890 gas chromatograph and an Agilent G2350A atomic emission detector.
A 30 m x 0.53 mm x 5.0 um J&W DB-1 capillary column is used.
Three injections are required: one for hydrogen, one for carbon/sulfur/nitrogen, and one for oxygen-containing components.
