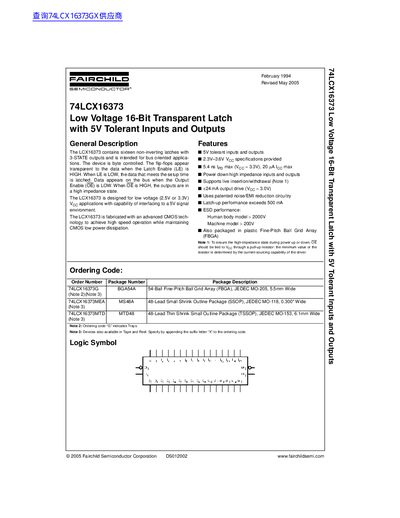

The LCX16373 is a low voltage 16-bit transparent latch with 5V tolerant inputs and outputs. It is designed for bus oriented applications and has byte control. The flip-flops are transparent to the data when the latch enable (LE) signal is high. When LE is low, the data meeting the setup time is latched. The data appears on the bus when the output enable (OE) is low. When OE is high, the outputs are in a high impedance state. The LCX16373 is suitable for low voltage (2.5V or 3.3V) VCC applications and can interface with a 5V signal environment. It is fabricated using advanced CMOS technology to achieve high speed operation while maintaining low power dissipation.
The 74LCX16373 is a 16-bit transparent latch device containing sixteen non-inverting latches with 3-STATE outputs. It is designed for low voltage (2.5V or 3.3V) applications while maintaining the capability to interface with a 5V signal environment. The device is fabricated using advanced CMOS technology to achieve high-speed operation with low power dissipation.
| Supply Voltage (Operating) | 2.3V to 3.6V |
|---|---|
| Output Drive Current | +24 mA |
| Latch-up Performance | > 500 mA |
| ESD Performance (Human Body) | > 2000V |
| Operating Temperature | -40 to +85 °C |
The device is designed for low voltage applications with a supply voltage specification of 2.3V to 3.6V.
Yes, the device has 5V tolerant inputs and outputs, allowing it to interface to a 5V signal environment.
The device is available in FBGA (54-ball), SSOP (48-lead), and TSSOP (48-lead) packages.
