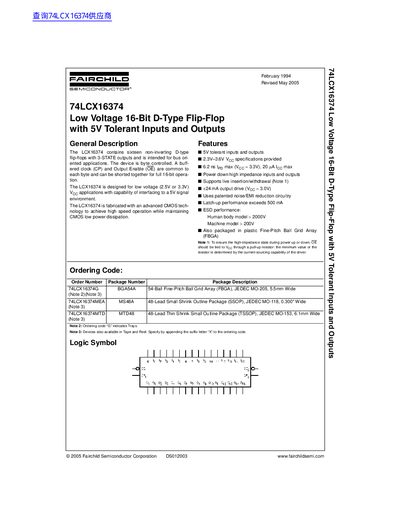

This document describes the features and characteristics of the 74LCX16374 Low Voltage 16-Bit D-Type Flip-Flop with 5V Tolerant Inputs and Outputs produced by Fairchild Semiconductor Corporation. The product features 5V tolerant inputs and outputs, and is intended for bus oriented applications. It supports low voltage (2.5V or 3.3V) VCC applications and can interface with a 5V signal environment. The product is manufactured using advanced CMOS technology, enabling high speed operation and low power dissipation.
The document describes the Fairchild Semiconductor 74LCX16374, a device containing sixteen non-inverting D-type flip-flops with 3-STATE outputs. It is designed for low voltage (2.5V or 3.3V) applications while maintaining compatibility with 5V signal environments through its tolerant inputs and outputs.
The datasheet provides comprehensive information including logic symbols, connection diagrams, truth tables, functional descriptions, absolute maximum ratings, DC and AC electrical characteristics, dynamic switching parameters, and physical dimensions for various package types such as FBGA, SSOP, and TSSOP.
| Supply Voltage (Operating) | 2.0 to 3.6 V |
|---|---|
| Maximum Clock Frequency | 170 MHz |
| Propagation Delay (Max) | 6.2 ns @ 3.3V |
| Output Drive Current | ±24 mA @ 3.0V |
| Package Types | FBGA, SSOP, TSSOP |
The device operates with a supply voltage between 2.0 V and 3.6 V.
Yes, the device features 5V tolerant inputs and outputs for interfacing with higher voltage environments.
The maximum clock frequency specified for this flip-flop is 170 MHz.
