MM74C86 is a quad 2-input exclusive-OR gate produced by Fairchild Semiconductor Corporation. It uses complementary metal oxide semiconductor (CMOS) transistors to achieve a wide power supply operating range, low power consumption, and high noise margin, and provides basic functions for implementing digital integrated circuit systems.

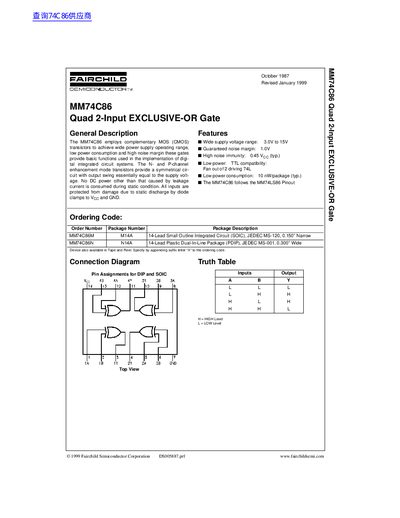

The MM74C86 is a quad 2-input EXCLUSIVE-OR gate utilizing complementary MOS (CMOS) transistors. This design provides a wide power supply operating range from 3.0V to 15V, low power consumption, and high noise immunity. The device features symmetrical circuits with output swings essentially equal to the supply voltage and includes diode clamps to protect inputs from static discharge.
| Supply Voltage Range | 3.0V to 15V |
|---|---|
| Guaranteed Noise Margin | 1.0V |
| Operating Temperature Range | -40°C to +85°C |
| Power Dissipation (PD) - Dual-In-Line Package | 700 mW |
| Power Dissipation (PD) - Small Outline Package | 500 mW |
The device guarantees a noise margin of 1.0V.
It is available in a 14-Lead Small Outline Integrated Circuit (SOIC) and a 14-Lead Plastic Dual-In-Line Package (PDIP).
