The MM74C00,MM74C02,MM74C04 series are four-input NAND gates, four-input NOR gates and six-way inverters manufactured by complementary MOS (CMOS) technology, which have wide power supply operating range, low power consumption, high noise immunity and symmetric controlled rise and fall times. It is an ideal choice for digital systems.

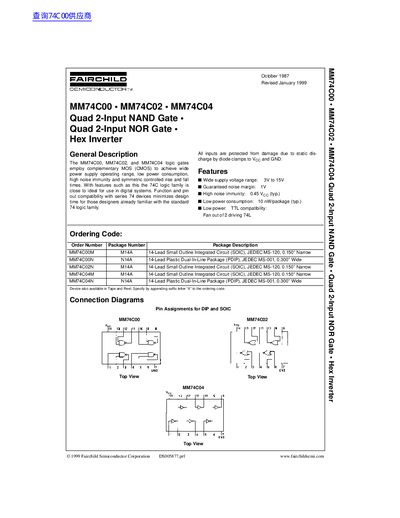

This document is a datasheet for the Fairchild MM74C00, MM74C02, and MM74C04 logic gate family, which includes Quad 2-Input NAND Gates, Quad 2-Input NOR Gates, and Hex Inverters. The devices utilize complementary MOS (CMOS) technology to achieve a wide power supply operating range from 3V to 15V, low power consumption, and high noise immunity. They are designed to be functionally and pin-out compatible with the standard 74 logic family.
| Low Power Consumption | 10 nW/package (typ.) |
|---|---|
| Guaranteed Noise Margin | 1V |
The typical power consumption is 10 nW per package.
Yes, they have function and pin-out compatibility with the series 74 devices.
