LM317AHV is a 3-terminal positive adjustable voltage regulator that is designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 57V. It employs internal current limiting, thermal shut down and safe area compensation.

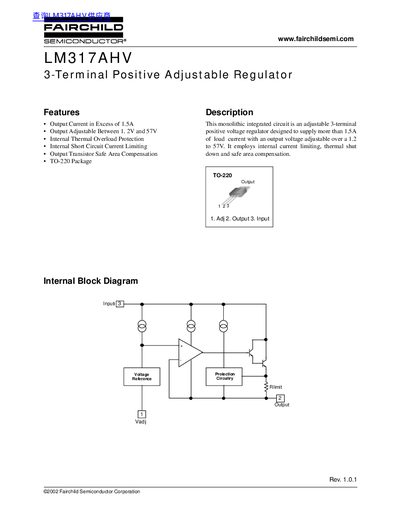

This document is a technical datasheet for the Fairchild Semiconductor LM317AHV, a monolithic integrated circuit designed as an adjustable 3-terminal positive voltage regulator. It is capable of supplying more than 1.5A of load current with an output voltage adjustable between 1.2V and 57V.
| Output Current | In Excess of 1.5A |
|---|---|
| Output Voltage Range | 1.2V to 57V |
| Package Type | TO-220 |
| Input-Output Voltage Differential (Max) | 60 V |
| Operating Junction Temperature Range | -65 ~ +125 °C |
The device provides an output current in excess of 1.5A.
Yes, the regulator includes internal thermal overload protection.
