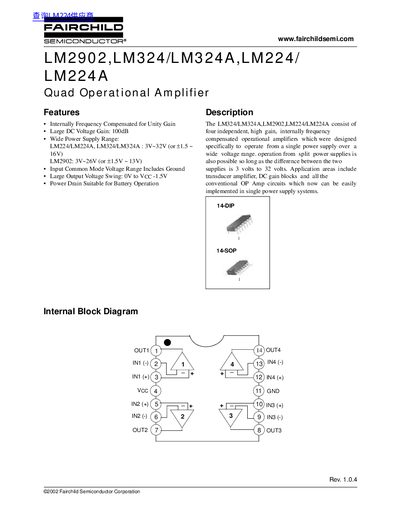

This datasheet details the electrical characteristics, thermal data, and mechanical dimensions for the LM224, LM324, and LM2902 quad operational amplifiers.
This document provides technical specifications for the LM224/LM224A, LM324/LM324A, and LM2902 quad operational amplifiers. These devices consist of four independent, high-gain amplifiers designed for single or split power supply operation. Key features include internal frequency compensation, a large DC voltage gain of 100dB, and an input common mode voltage range that includes ground.
| Large DC Voltage Gain | 100dB |
|---|---|
| Power Supply Range (LM2902) | 3V to 26V |
| Input Common Mode Voltage Range | Includes Ground |
| Output Voltage Swing | 0V to V CC -1.5V |
The power supply range is 3V to 26V (or ±1.5V to ±13V).
Yes, the input common mode voltage range includes ground.
Yes, they are internally frequency compensated for unity gain.
