The MM74C14 Hex Schmitt Trigger is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement transistors. It has wide supply voltage range, high noise immunity, low power and TTL compatibility.

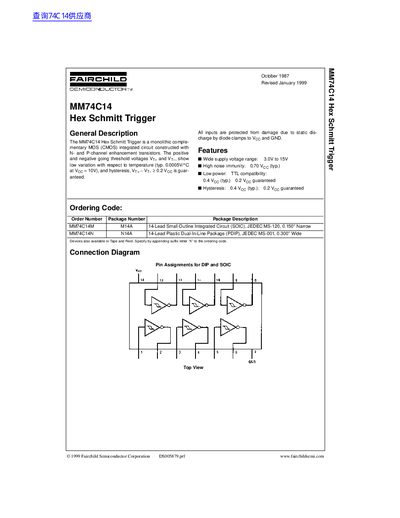

This document is a datasheet for the Fairchild MM74C14, a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement transistors. The device features a wide supply voltage range from 3.0V to 15V and includes inputs protected from static discharge by diode clamps. It is designed for applications requiring high noise immunity and low power consumption with TTL compatibility.
| Supply Voltage Range | 3.0V to 15V |
|---|---|
| Hysteresis (Typ) | 1.5 V |
The device supports a wide supply voltage range from 3.0V to 15V.
Yes, the datasheet lists TTL compatibility as a positive feature.
