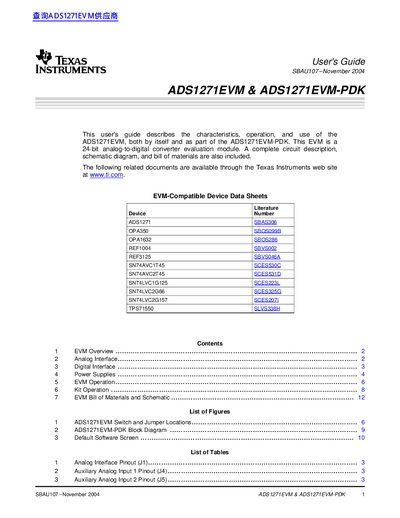

This user's guide describes the characteristics, operation, and use of the ADS1271EVM, both by itself and as part of the ADS1271EVM-PDK. This EVM is a 24-bit analog-to-digital converter evaluation module. A complete circuit description, schematic diagram, and bill of materials are also included.
The ADS1271EVM is a full-featured evaluation board for the ADS1271 24-bit Analog-to-Digital Converter. It features two ADS1271 converters on board to illustrate the use of daisy-chain mode, along with on-board reference and oscillator circuits. The modular design allows for use with a variety of DSP and microcontroller interface boards.
The ADS1271EVM-PDK is a complete evaluation kit that includes a USB-based motherboard and evaluation software for use with a personal computer running Microsoft Windows operating systems. The guide provides details on analog and digital interfaces, power supplies, reference voltage selection, and operation procedures.
| Converter Type | 24-bit analog-to-digital converter |
|---|---|
| Number of Converters | Two |
| Operating System | Microsoft Windows |
| Stacking Capability | Up to 4 EVMs |
The evaluation software is designed for use with a personal computer running Microsoft Windows operating systems.
The board includes two ADS1271 converters to illustrate the use of daisy-chain mode.
Yes, the EVM is designed to permit stacking, with up to 4 EVMs allowed to be stacked for a total of 8 devices.
