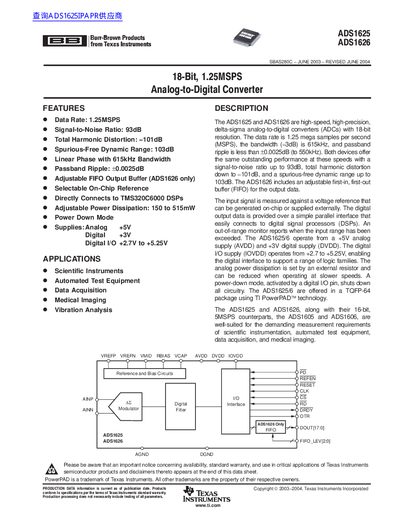

The ADS1625 and ADS1626 are high-speed, high-precision, delta-sigma analog-to-digital converters (ADCs) with 18-bit resolution.
The ADS1625 and ADS1626 are high-speed, high-precision delta-sigma analog-to-digital converters (ADCs) with 18-bit resolution and a data rate of 1.25 mega samples per second (MSPS). These devices feature a bandwidth of 615kHz and offer outstanding performance metrics including a signal-to-noise ratio up to 93dB, total harmonic distortion down to -101dB, and a spurious-free dynamic range up to 103dB. The ADS1626 specifically includes an adjustable first-in, first-out (FIFO) buffer for output data.
| Resolution | 18 Bits |
|---|---|
| Data Rate | 1.25 MSPS |
| Signal-to-Noise Ratio (SNR) | 93 dB |
| Total Harmonic Distortion (THD) | -101 dB |
| Spurious-Free Dynamic Range (SFDR) | 103 dB |
| Bandwidth (-3dB) | 615 kHz |
| Operating Temperature Range | -40 to +85 °C |
Yes, the ADS1626 includes an adjustable first-in, first-out (FIFO) for the output data.
The devices operate from a +5V analog supply (AVDD).
