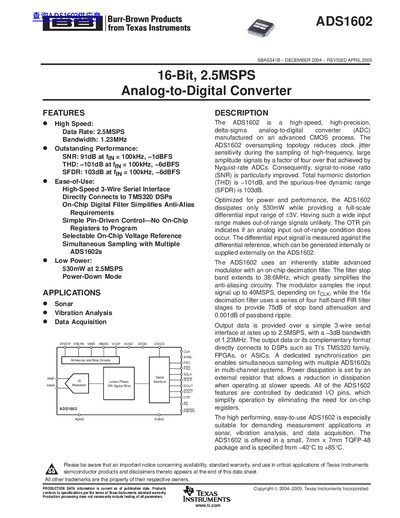

The ADS1602 is a high-speed, high-precision, delta-sigma analog-to-digital converter (ADC) manufactured on an advanced CMOS process. It features high speed data rate and outstanding performance with a bandwidth of 1.23MHz, SNR of 91dB, THD of -101dB, and SFDR of 103dB. It also offers ease of use with a high-speed 3-wire serial interface that directly connects to TMS320 DSPs, an on-chip digital filter that simplifies anti-alias requirements, and simple pin-driven control without on-chip registers to program. Additionally, it supports simultaneous sampling with multiple ADS1602s and has low power consumption with a maximum power of 530mW. The ADS1602 is suitable for applications such as sonar, vibration analysis, and data acquisition.
The ADS1602 is a high-speed, high-precision delta-sigma analog-to-digital converter (ADC) manufactured on an advanced CMOS process. It features an oversampling topology that reduces clock jitter sensitivity and provides a data rate of up to 2.5MSPS with a bandwidth of 1.23MHz. The device includes an on-chip digital filter to simplify anti-aliasing requirements and offers a simple pin-driven control interface without on-chip registers.
Optimized for power and performance, the ADS1602 dissipates only 530mW at full speed while providing a full-scale differential input range of +3V. It is suitable for demanding measurement applications such as sonar, vibration analysis, and data acquisition, operating over a temperature range of -40°C to +85°C.
| Data Rate | 2.5 MSPS |
|---|---|
| Bandwidth | 1.23 MHz |
| Resolution | 16 Bits |
| Power dissipation | 530 mW at 2.5 MSPS |
| Operating Temperature Range | -40°C to +85°C |
| Package | TQFP-48 |
The ADS1602 provides a data rate of up to 2.5 MSPS.
No, the device uses simple pin-driven control with no on-chip registers to program.
The device provides a full-scale differential input range of +3V.
