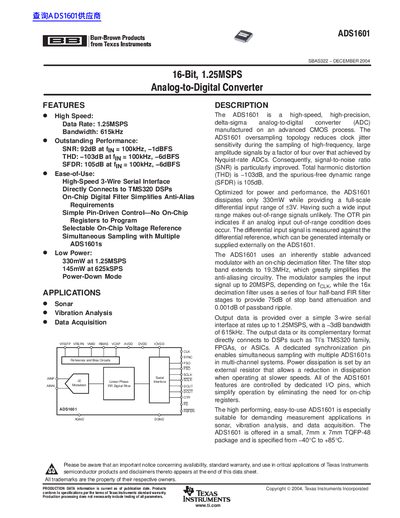

The document describes the features and characteristics of the ADS1601 high-speed, high-precision, delta-sigma analog-to-digital converter (ADC), including data rate, bandwidth, performance, ease of use, low power consumption, and applications.
The ADS1601 is a high-speed, high-precision delta-sigma analog-to-digital converter manufactured on an advanced CMOS process. It utilizes an oversampling topology to reduce clock jitter sensitivity and features an on-chip decimation filter that simplifies anti-aliasing circuitry requirements.
| Data Rate | 1.25 MSPS |
|---|---|
| Bandwidth | 615kHz |
| Total harmonic distortion (THD) | -103 dB at fIN = 100kHz, -6dBFS |
| Spurious-free dynamic range (SFDR) | 105 dB at fIN = 100kHz, -6dBFS |
| Resolution | 16 Bits |
| Operating Temperature Range | -40°C to +85°C (Specified) |
The device supports a data rate up to 1.25 MSPS.
Yes, it features a selectable on-chip voltage reference.
The output data has a -3dB bandwidth of 615kHz.
