The SCHS226A is a quad 2-input AND gate from Harris Semiconductor. This product features buffered inputs, a typical propagation delay of 4.3ns, exceeds 2kV ESD protection, SCR-Latchup-Resistant CMOS process and circuit design, speed of Bipolar FAST™/AS/S with significantly reduced power consumption, balanced propagation delays, AC types feature 1.5V to 5.5V operation and balanced noise immunity at 30% of the supply.

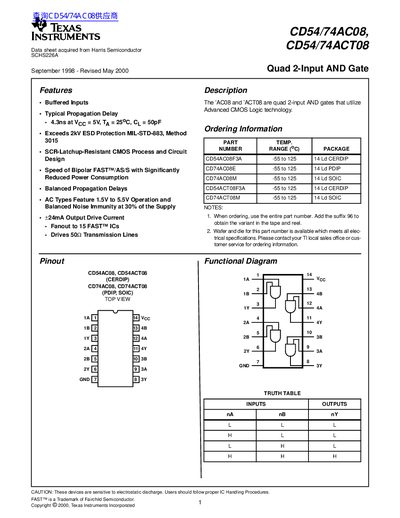

This document is a datasheet for the CD54/74AC08 and CD54/74ACT08 quad 2-input AND gates manufactured by Texas Instruments. These devices utilize advanced CMOS logic technology and feature buffered inputs to drive 50-ohm transmission lines or fan out to 15 FAST ICs. The AC types support a supply voltage range of 1.5V to 5.5V, while the ACT types operate between 4.5V and 5.5V.
| Output Drive Current | +24mA |
|---|---|
| Fanout Capability | 15 FAST ICs |
| Typical Propagation Delay (5V) | 4.3ns |
| ESD Protection | 2kV |
