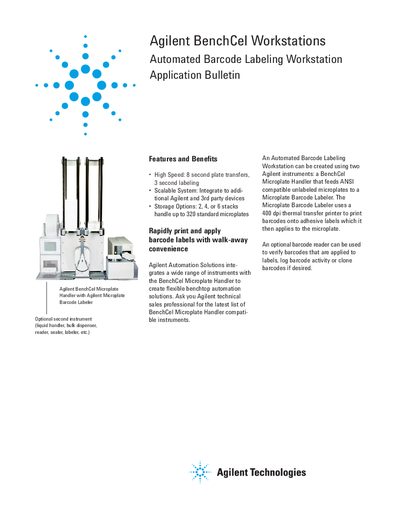

This document describes the features and benefits of the Agilent BenchCel Workstations Automated Barcode Labeling Workstation Application Bulletin. The workstation offers high-speed plate transfers and labeling, scalability to integrate additional devices, and storage options for up to 320 microplates.
The Agilent BenchCel Automated Barcode Labeling Workstation is designed to rapidly print and apply barcode labels to microplates with walk-away convenience. The system integrates an Agilent BenchCel Microplate Handler with an Agilent Microplate Barcode Labeler to create flexible benchtop automation solutions. An optional barcode reader can be added to verify applied barcodes, log activity, or clone barcodes.
The workstation features high-speed processing, capable of transferring plates in approximately eight seconds and labeling them in three seconds. It supports scalable storage options with 2, 4, or 6 stacks, handling up to 320 standard microplates. The system utilizes a thermal transfer printer with 400 dpi resolution to print labels on any or all four sides of ANSI compliant microplates.
| Plate Transfer Time | approximately eight seconds per microplate |
|---|---|
| Labeling Cycle Time | approximately three seconds per microplate |
| Printer Resolution | 400 dpi |
| Storage Capacity | up to 320 standard microplates |
| Operating Voltage | 100-240 VAC, 50/60 Hz |
| Operating Current (120V) | 8.2A |
| Air Requirement | 98 LPM at 5.5 bar |
| Label Application Accuracy | + 0.5 mm horizontally or vertically |
| Height | 45.1 cm [17.8 in] |
| Width | 71.4 cm [28.1 in] |
| Depth | 61 cm [ 24 in] |
| Weight | 48.8 kg [108 lbs] |
The system is compatible with all ANSI compliant microplates, including deep well plates, PCR plates, and tube racks.
The system supports Code 39, Interleaved 2 of 5, Code 128, and many others.
The system requires ActiveX device drivers for both the BenchCel and Barcode Labeler, along with VWorks Automation Control software.
The workstation requires a PC running Windows XP or Vista.
