The ST303S series is IRF's IGBT product, which has high surge current capability, low thermal resistance, high speed, and is suitable for inverters, choppers, induction heating and other applications.

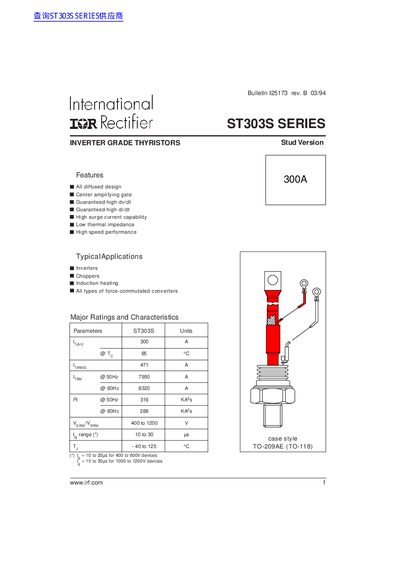

This document is a technical bulletin (Bulletin 125173 rev. B) for the International Rectifier ST303S Series of Inverter Grade Thyristors with Stud Version packaging. The devices feature an all-diffused design with a center amplifying gate and are guaranteed for high dv/dt and di/dt performance.
| Max. average on-state current | 300 A |
|---|---|
| Case temperature rating | 65 °C |
| Max. peak reverse and off-state leakage current | 50 mA |
| Max. peak positive gate current | 10 A |
| Case style | TO-209AE (TO-118) |
The maximum average on-state current is 300 A when the case temperature is 65 °C.
The maximum critical rate of rise of off-state voltage is 500 V/us.
