The ST300C..C series is a 650A phase control thyristor with features including a center amplifying gate, a metal case with ceramic insulator, and an international standard TO-200AB (E-PUK) case. Typical applications include DC motor control, controlled DC power supplies, and AC controllers.

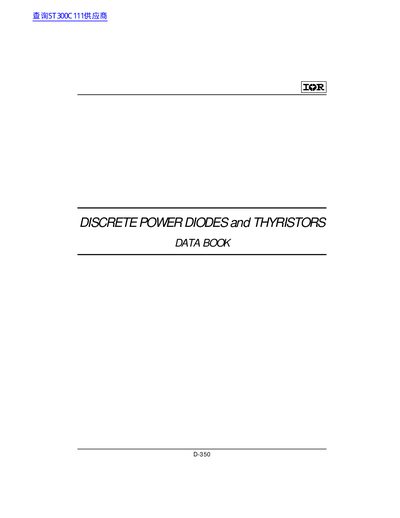

This document is a datasheet for the International Rectifier ST300C..C Series of phase control thyristors. The devices feature a metal case with ceramic insulator and utilize the International standard TO-200AB (E-PUK) case style. Key features include a center amplifying gate and suitability for applications such as DC motor controls, controlled DC power supplies, and AC controllers.
| Max. average on-state current | 650 A |
|---|---|
| Max. RMS on-state current | 1290 A |
| Case style | TO-200AB (E-PUK) |
| Approximate weight | 83 g |
Typical applications include DC motor controls, controlled DC power supplies, and AC controllers.
The maximum average on-state current is 650 A under 180° conduction with a half sine wave.
