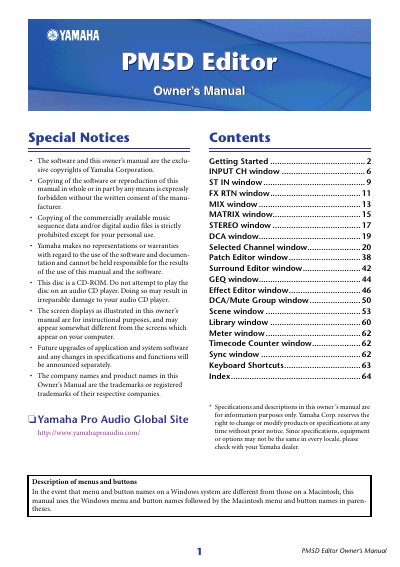

YAMAHA PM5D Editor user manual

About this manual

The PMS5D Editor is a computer application that enables users to remotely control the Yamaha PM5D mixing console and save parameter settings. To begin using the editor, users must first configure Studio Manager and then synchronize the software with the physical console.

The manual details how to set up system parameters such as MIDI ports, channel linking, and confirmation dialogs. It also covers mixer setup options including Pair Mode, Bus Setup, Surround Mode, and Stereo B allocation. Users can create, save, and manage sessions (YSE files) containing mix settings.

What's inside

• Getting Started
• System Setup
• Console Setup
• Synchronizing PMS5D Editor
• Working with Sessions
• Undo/Redo Function
• INPUT CH window
• Offline Edit Function

Specifications

Frequently asked questions

What is the purpose of synchronizing PMS5D Editor?

Synchronization matches the parameter settings on the console with those in PM5D Editor because they may differ when the software starts up.

What happens if I save a session in the Studio Manager window?

All selected Editor settings are saved in a single file with the extension YSM.
