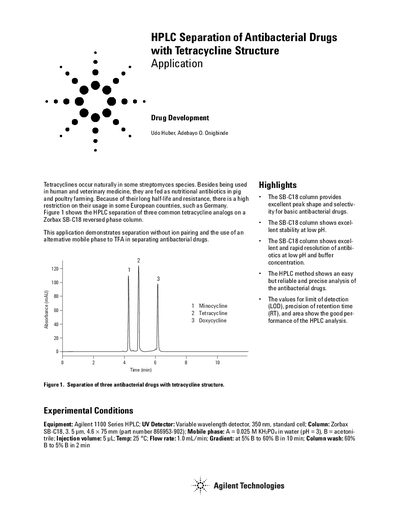

This document discusses the natural occurrence of tetracyclines, their use in human and veterinary medicine, and their use as nutritional antibiotics in pig and poultry farming. The document also demonstrates the HPLC separation of antibacterial drugs with a tetracycline structure using a Zorbax SB-C18 reversed phase column and an alternative mobile phase to TFA. The HPLC method provides an easy, reliable, and precise analysis of the antibacterial drugs.
This document details an HPLC method for separating three common tetracycline analogs: Minocycline, Tetracycline, and Doxycycline. The method utilizes a Zorbax SB-C18 reversed phase column and demonstrates separation without ion pairing, using an alternative mobile phase to trifluoroacetic acid (TFA).
The experimental setup includes an Agilent 1100 Series HPLC with a variable wavelength UV detector set to 350 nm. The method specifies a gradient elution from 5% to 60% acetonitrile in 10 minutes, followed by a column wash. Performance data for the limit of detection (LOD), retention time precision, and area precision are provided for the three compounds.
| Column | Zorbax SB-C18, 3.5 µm, 4.6 x 75 mm |
|---|---|
| Mobile phase A | 0.025 M KH2PO4 in water (pH = 3) |
| Mobile phase B | Acetonitrile |
| Injection volume | 5 µL |
| Temperature | 25 °C |
| Flow rate | 1.0 mL/min |
| Gradient | 5% B to 60% B in 10 min |
| Column wash | 60% B to 5% B in 2 min |
No, the method demonstrates separation without ion pairing.
The LOD for Minocycline is 0.1 mg/L.
