Agilent 1100 Series LC-ESI-MS Nitrofuran Metabolite Analysis Application Note

A liquid chromatography-electrospray ionization-mass spectrometry (LC-ESI-MS) method was developed for the simultaneous determination of the metabolites of four nitrofuran antibacterial drugs in chicken tissues: furazoli- done, furaltadone, nitrofurazone, and nitrofurantoin. Sample clean-up and analyte enrichment were performed by liquid-liquid extraction with ethyl acetate followed by solvent washing, hydrolysis of the protein-bound drug metabolites, and derivatization with 2-nitrobenzaldehyde (2-NBA). ESI parameters were optimized, and the chro- matographic separation of all metabolites was examined. Each metabolite produced a simple mass spectrum con- taining a strong signal corresponding to [M+H]+. Metabolite calibration curves, in the 0.25 to 1 ng/mL range, exhibited correlation coefficients greater than 0.999. The limit of detection (LOD) for each analyte ranged from 0.02 to 0.06 ng/mL. Introduction The four drugs shown in Figure 1, furazolidone, furaltadone, nitrofurazone, and nitrofurantoin, belong to the group of nitrofuran antibacterial drugs. These drugs have been widely used as feed additives to prevent bacterial enteritis by Escherichia coli and Salmonella in cattle, fish, swine. The main metabolites of these drugs are 5-methyl-5-nitro-2-furaldehyde and 5-amino-5-nitro-2-furaldehyde, which are produced by the hydrolysis of the protein-bound drug metabolites.

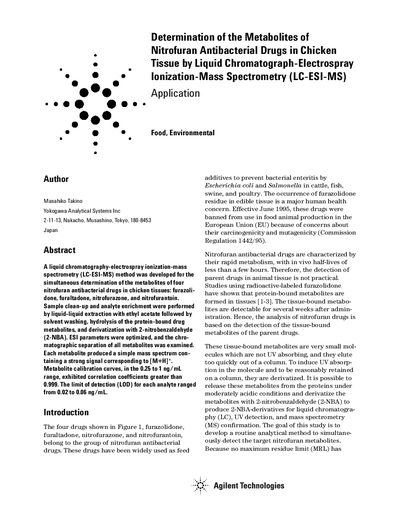

Agilent 1100 Series LC-ESI-MS Nitrofuran Metabolite Analysis Application Note - cover page
Brand
Agilent
Category
Other
Document type
Application Note
Language
English
Pages
10
File format
PDF
File size
98 KB
Published
12 June, 2012
Updated
30 September, 2023
MD5 checksum
8AE5DBBB5516D67BFA8376B230D9D811

About this manual

This document details a liquid chromatography-electrospray ionization-mass spectrometry (LC-ESI-MS) method developed for the simultaneous determination of four nitrofuran antibacterial drug metabolites in chicken tissues: furazolidone, furaltadone, nitrofurazone, and nitrofurantoin. The method involves sample clean-up via liquid-liquid extraction, hydrolysis of protein-bound metabolites, and derivatization with 2-nitrobenzaldehyde (2-NBA) to enable detection.

What's inside

  • Abstract
  • Introduction
  • Experimental
  • Sample Preparation
  • Instrument and Experimental Conditions
  • System Optimization
  • Linearity, Detection Limits, and Precision

Specifications

ColumnInertsil ODS3, 150 mm x 2.1 mm, 5 um
Column temp20°C
Flow rate200 uL/min
Sample volume30 ul
Scan range100-600 m/z
Calibration range0.25 to 1 ng/mL
Correlation coefficient> 0.999
Limit of detection0.02 to 0.06 ng/mL

Frequently asked questions

Which nitrofuran metabolites are analyzed in this method?

The method analyzes furazolidone, furaltadone, nitrofurazone, and nitrofurantoin metabolites.

What is the optimal fragmentor voltage for 2-NBA-SEM?

The optimal fragmentor voltage for 2-NBA-SEM is 120 V.

What is the optimal capillary voltage for the metabolites?

The optimal capillary voltage found for all three metabolites is 2000 V.
